15mm Paving Slab Support for EPDM Roofs
15mm Paving Slab Support for EPDM Roofs
Couldn't load pickup availability
Plastic Support for Concrete Slabs on Rubber Roofing

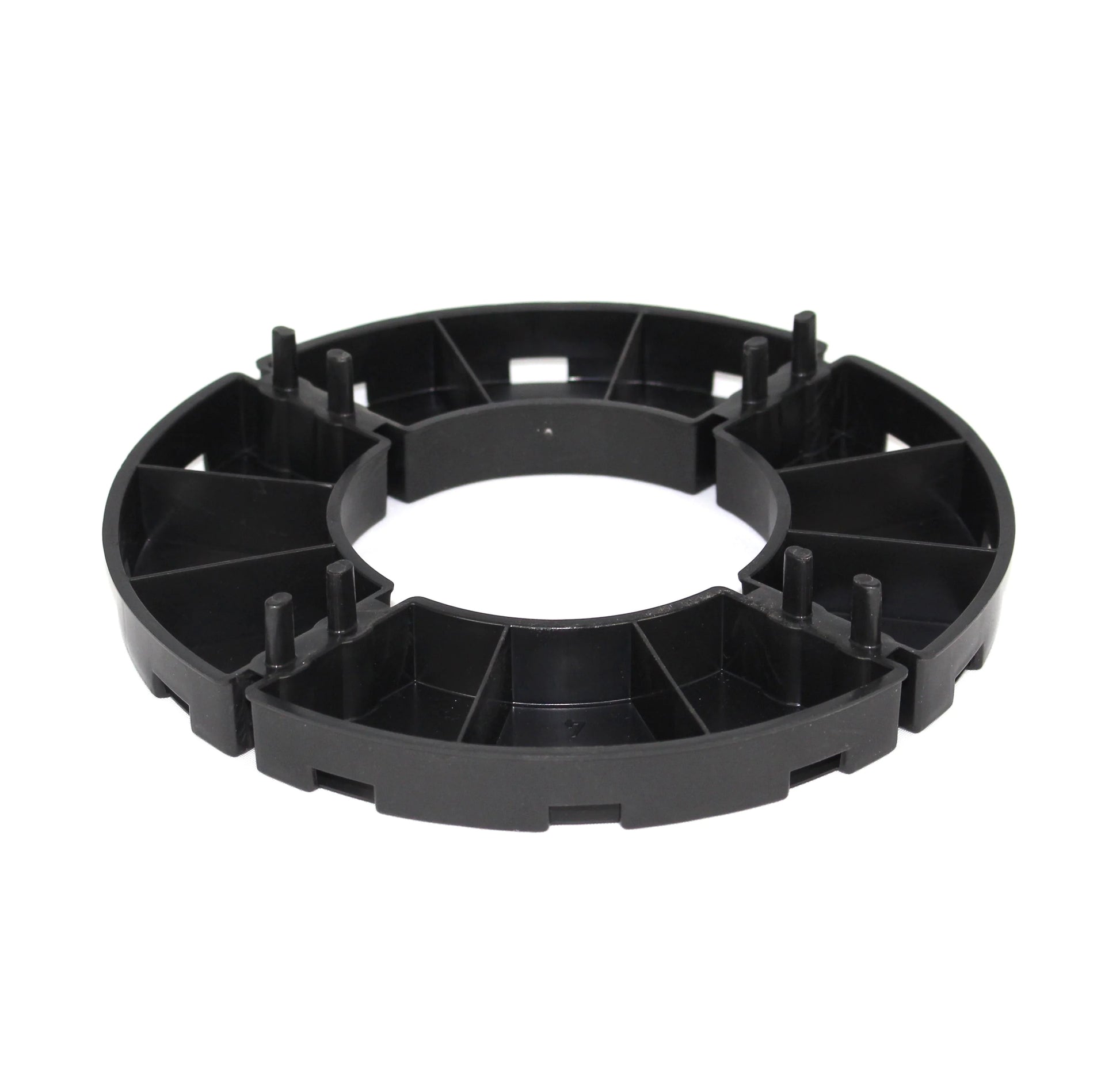

This 15mm paving support (150mm diameter) is designed to support concrete paving slabs installed over EPDM rubber roofing membranes.

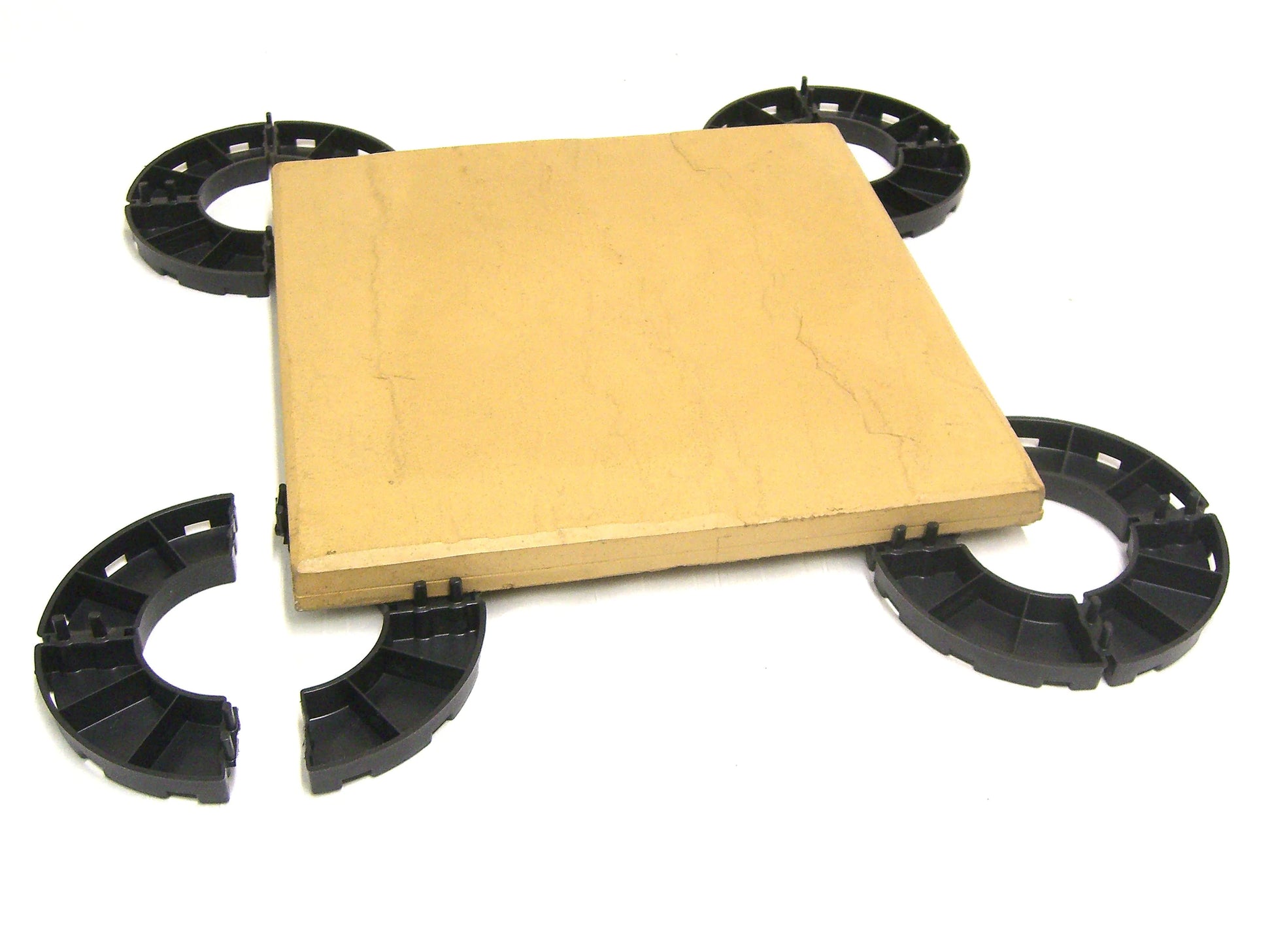

Each support sits beneath the corners of four adjacent slabs, meaning one support is required per slab when laid in a standard grid pattern.
What It’s Used For ▸
- Supporting concrete paving slabs on EPDM roofs
- Creating spacing between slabs and membrane
- Assisting drainage beneath paving systems
- Balcony and terrace installations
Why Use Paving Supports? ▸
Installing slabs directly onto EPDM can restrict drainage and increase friction against the membrane.
Paving supports:
- Elevate slabs slightly above the membrane
- Allow water to drain freely
- Help distribute weight evenly
- Reduce direct abrasion on the waterproof layer
For additional membrane protection beneath paving systems, a geotextile separation layer can also be used.
Installation Notes ▸
- Supports can be placed directly onto the EPDM membrane.
- One support is required per slab in standard layouts.
- Always confirm the roof structure is capable of supporting the additional load of concrete paving slabs before installation.
Specification ▸
- Height: 15mm
- Diameter: 150mm
- Material: Plastic
- Application: EPDM rubber roofing systems
Summary ▸
These 15mm plastic paving supports are designed for installing concrete slabs over EPDM rubber roofs. Positioned at slab corners, they provide spacing, drainage and membrane protection for terrace and balcony applications.
