Resitrix Internal Drain Outlet (Drop Outlet)
Resitrix Internal Drain Outlet (Drop Outlet)
Couldn't load pickup availability
Self-Adhesive EPDM Drain Outlet for Resitrix Flat Roof Systems
This Resitrix internal drain outlet, also known as a drop outlet, is designed to connect a vertical downpipe directly through the roof deck and onto the installed Resitrix EPDM Membrane.
Manufactured with a self-adhesive Resitrix EPDM flange, it is welded directly to the installed Resitrix membrane to create a secure, watertight bond. The polypropylene spigot provides a durable connection into the rainwater pipe below.
Designed for professional flat roof installations where reliable internal drainage is essential.
What It’s Used For ▸
- Forming an internal rainwater outlet on Resitrix EPDM roofs
- Connecting the roof membrane to a vertical downpipe
- Drainage points where water discharges through the roof deck
- New installations and refurbishment projects using Resitrix membrane
Suitable for Resitrix EPDM systems only.
Why It Matters ▸
Internal outlets are critical drainage points on flat roofs. Poor detailing at this junction can lead to leaks directly into the building structure.
This drop outlet integrates directly with the Resitrix membrane, allowing the flange to be welded to the field sheet. This creates:
- A continuous waterproof layer
- A secure bond at the most vulnerable drainage point
- A controlled connection into the rainwater pipe
Because the flange is manufactured from Resitrix material, it maintains system compatibility and reduces the risk of detailing failures.
Installation Overview ▸
- Install and fully bond the Resitrix membrane.
- Cut an opening in the membrane to match the outlet spigot diameter.
- Insert the drop outlet into position through the deck.

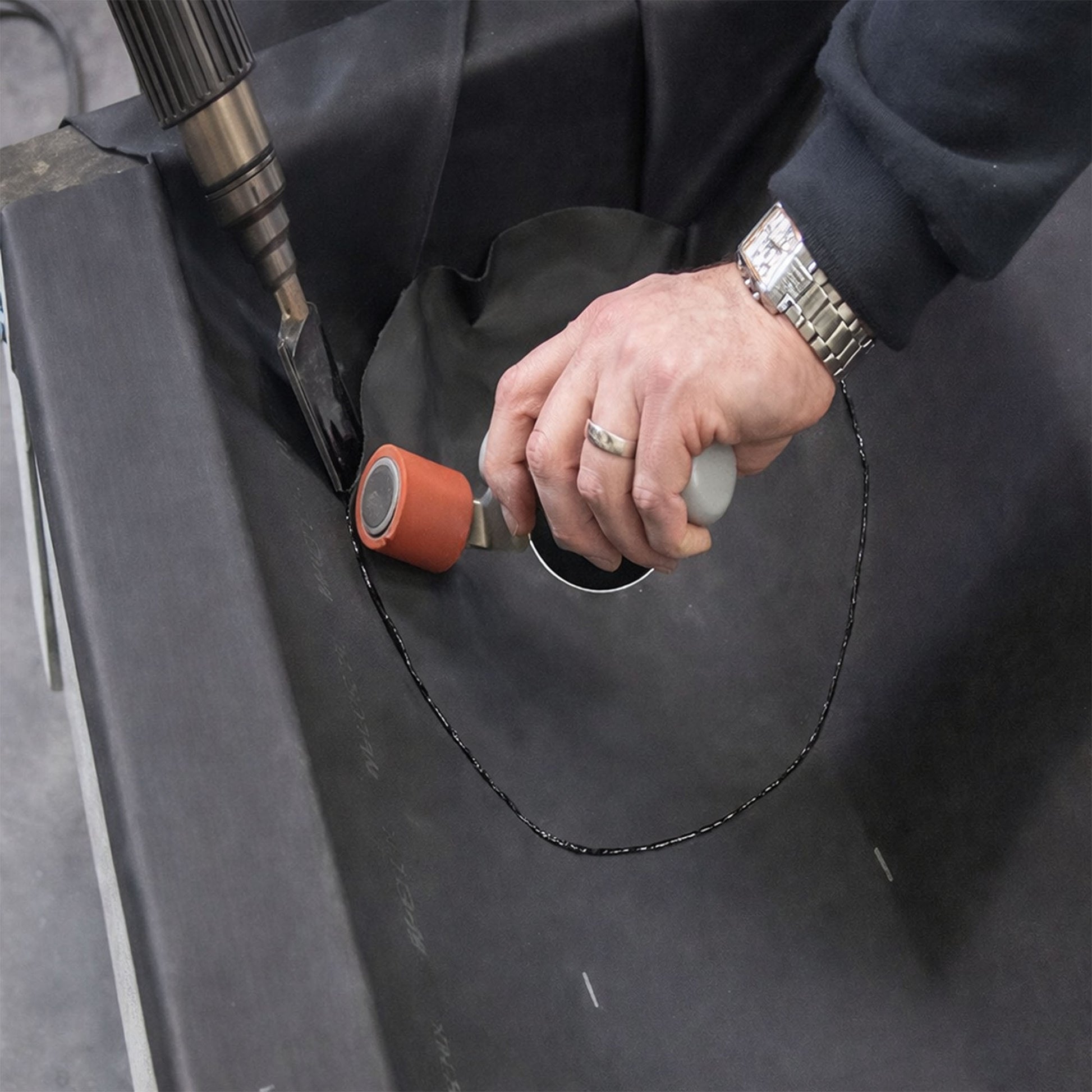

- Heat weld the Resitrix flange to the main membrane, working from the inner edge outward to ensure a full bond.
Correct welding technique is essential to achieve a watertight seal.
Technical Specification ▸
Flange Material: Resitrix EPDM membrane (self-adhesive backing)
Spigot Material: Polypropylene
Outlet Type: Vertical drop outlet

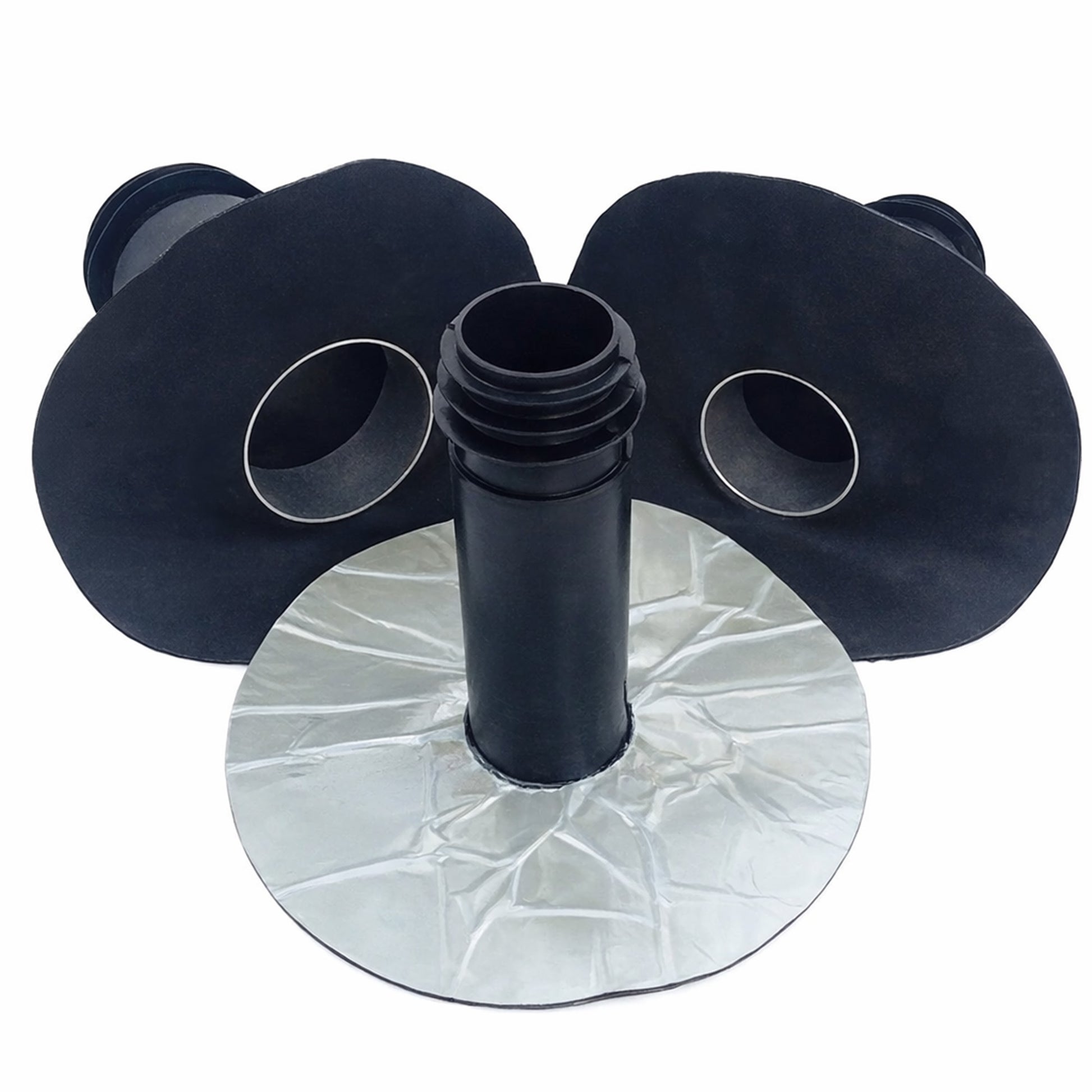

Spigot Diameter Options:
- 58–70mm (fits 3" downpipe)
- 78–90mm (fits 3.5" downpipe)
- 96–105mm (fits 4" downpipe)
Compatibility: Resitrix EPDM roofing systems
A Roofer’s Perspective ▸
Drain outlets are one of the highest-risk areas on a flat roof. Using a factory-formed Resitrix outlet means you’re welding like-for-like materials, which gives far more confidence than trying to form site-made details.
