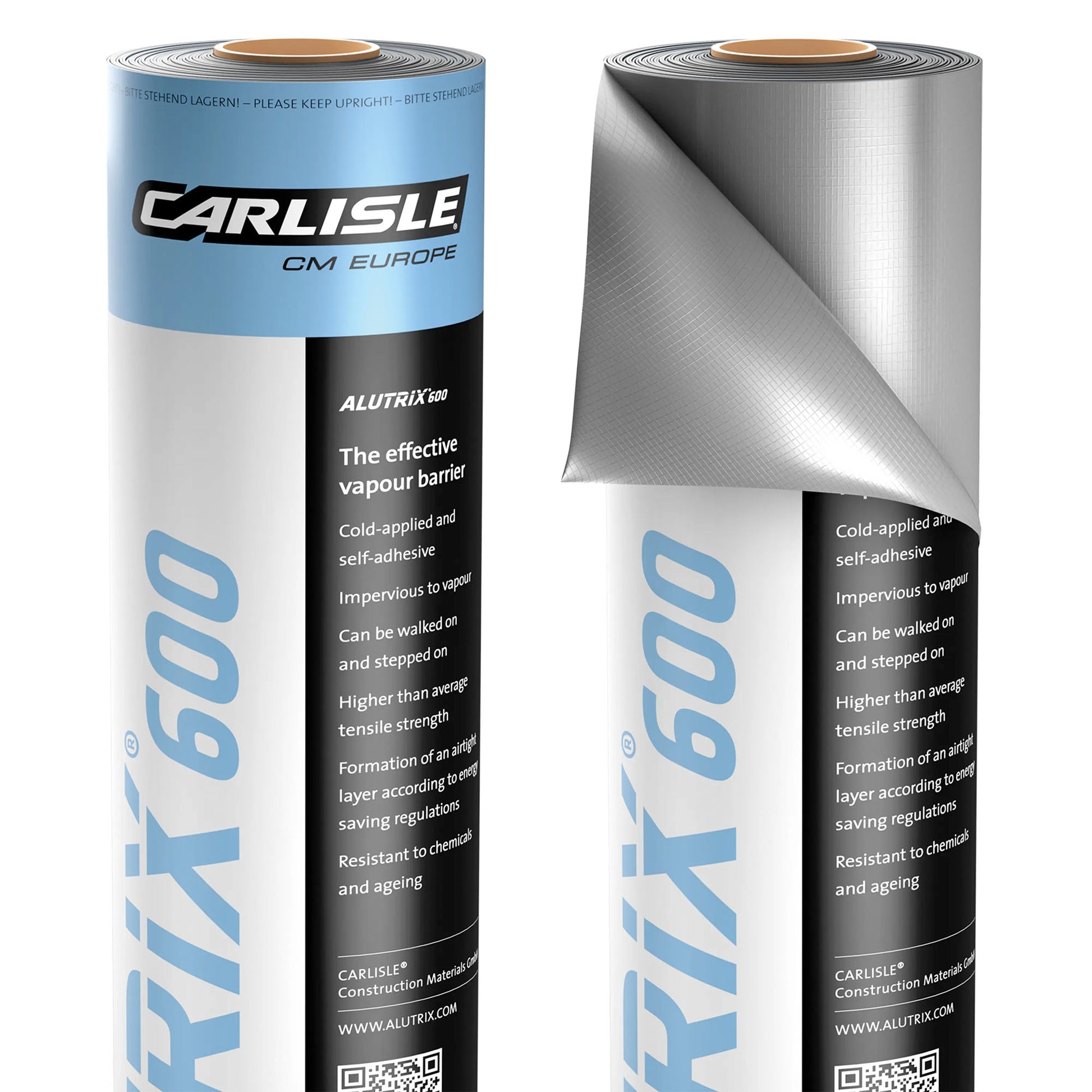

• Two rolls of Carlisle ALUTRIX 600 vapour barrier for flat roofs on a white background

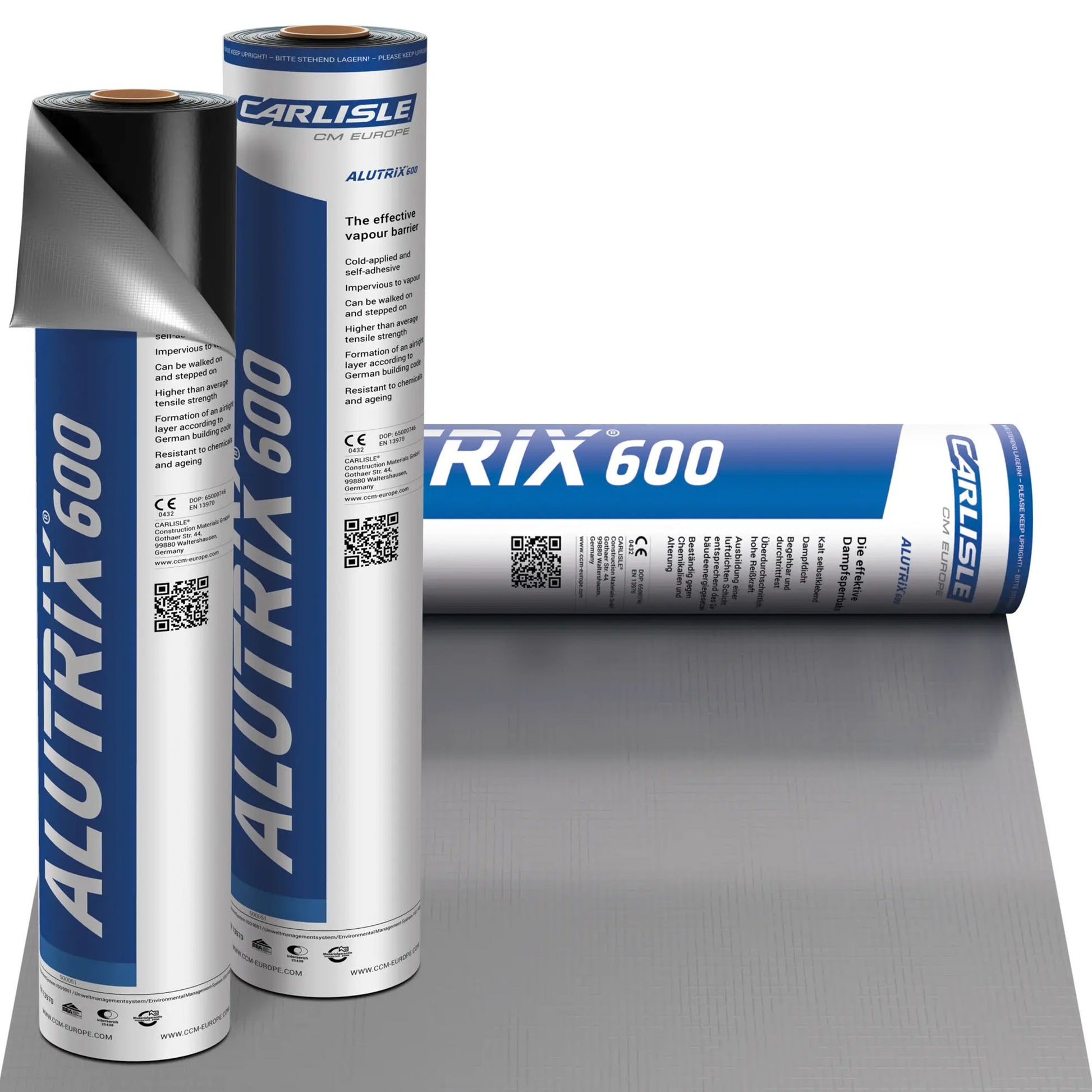

  • Three rolls of Carlisle Alutrix 600 vapour barrier for flat roofs with one roll, rolled out displaying the texture and colour of the roll

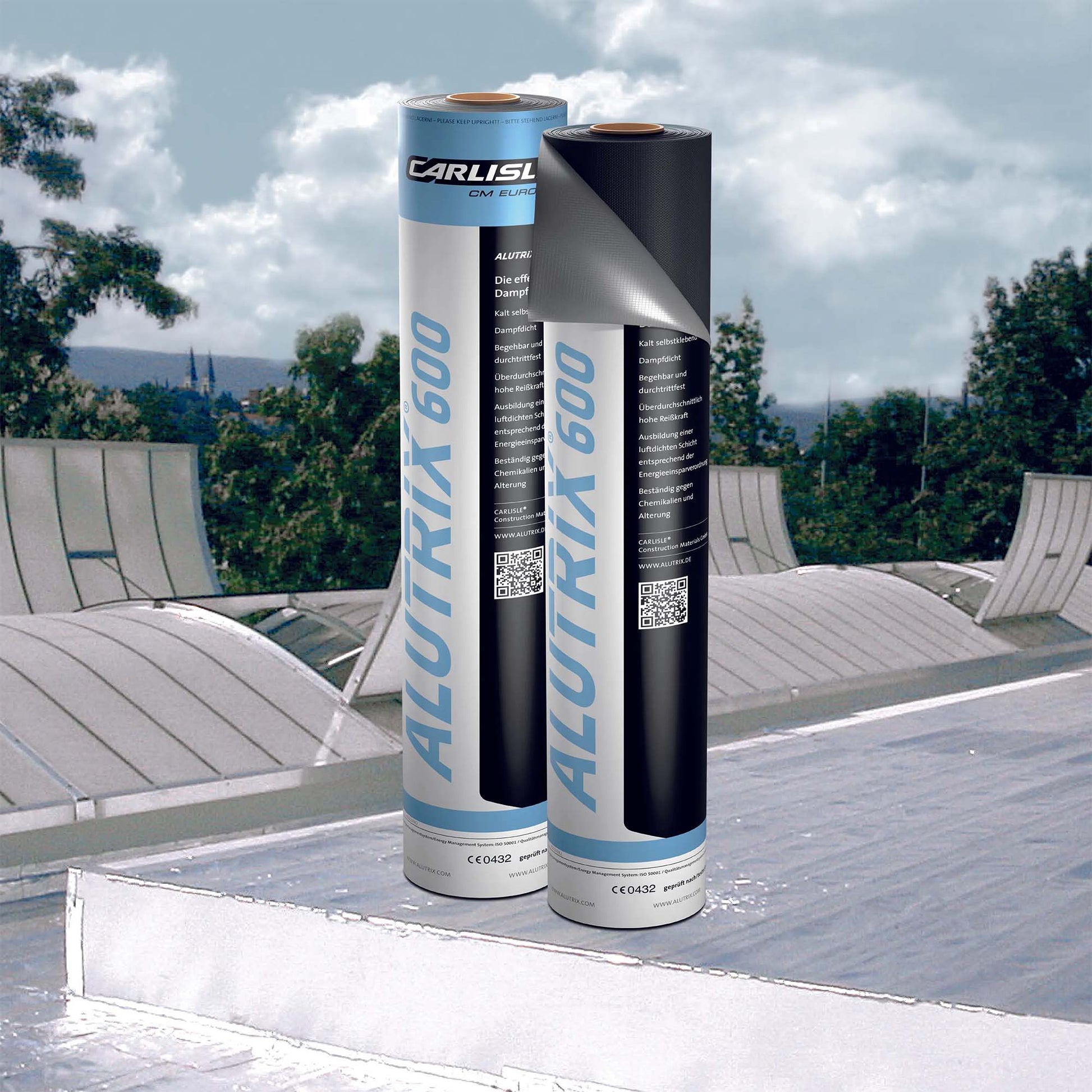

  • Two rolls of alutrix 600 self-adhesive vapour barrier for flat roofs on a roof that has being covered with the vapour barrier

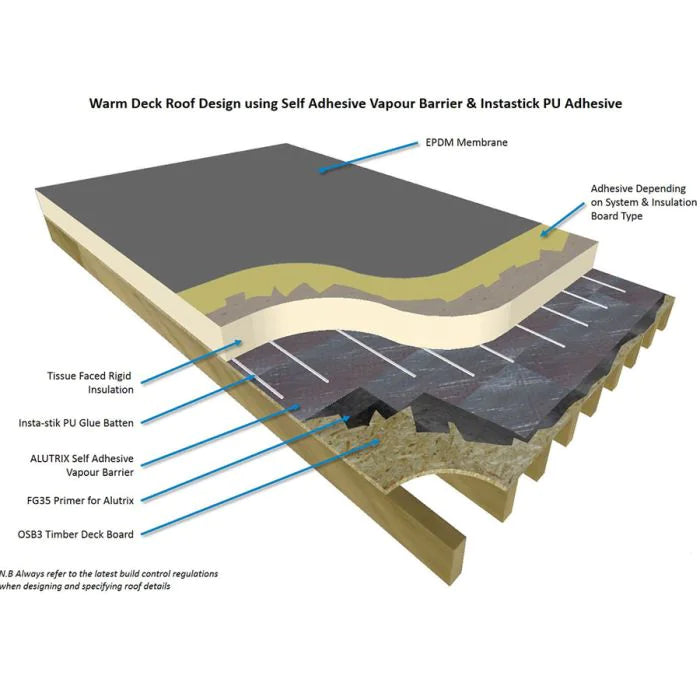

  • Diagram of a warm deck roof design with labeled components.
1 4

The Flat Roofing Shop

ALUTRIX® 600 Self-Adhesive Vapour Barrier

ALUTRIX® 600 Self-Adhesive Vapour Barrier

£94.38 GBP
£94.38 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

High-Performance Aluminium Vapour Control Layer for Warm Roofs

ALUTRIX® 600 is a reinforced aluminium self-adhesive vapour barrier membrane designed for warm deck flat roof constructions. Widely specified on commercial and high-performance builds, it delivers a vapour-tight and airtight layer beneath insulation and waterproofing systems.

Manufactured as a reinforced aluminium composite with a self-adhesive polymer-modified bitumen backing and removable release film, ALUTRIX 600 forms a durable vapour control layer when installed with FG35 primer.

Suitable for normal and high-humidity environments, including buildings subject to significant internal moisture loads.

What It's Used For ▸
  • Warm deck flat roof constructions
  • Installation over profiled steel decking
  • Use beneath insulation when installing single ply, EPDM, self-adhesive EPDM, felt, asphalt and liquid systems
  • Projects requiring a high-performance vapour control layer
  • Roofs over swimming pools, kitchens, breweries and high humidity areas

Requires FG35 primer for full bonding to most substrates.

Compatible substrates include:

  • Galvanised or uncoated steel decks
  • Timber / timber-based boards
  • Concrete (dry, smooth and clean)
  • Bituminous substrates
Why It Matters ▸

In a warm roof build-up, the vapour barrier is critical. If moisture passes into the insulation layer, it can reduce thermal performance and cause long-term damage.

ALUTRIX 600 provides:

  • sd value > 1,500m (high vapour resistance)
  • Airtight layer formation
  • High tensile and tear resistance
  • A surface that can be walked on during installation
  • Resistance to ageing and chemicals

Because it is reinforced and bonded using FG35 primer, it delivers secure adhesion to demanding substrates such as profile steel sheets.

Installation Overview ▸
  1. Ensure substrate is dry, smooth and free from dust and grease.
  2. Apply FG35 primer where required and allow to dry.
  3. Unroll and align membrane with minimum 50mm overlaps.
  4. Remove release film and press firmly into place.
  5. Roll seams evenly with a silicone roller.

ALUTRIX can be installed from +5°C

Technical Specification ▸

Thickness: 0.6mm
Weight: Approx. 700 g/m²
Roll Width: 1.08m
Roll Length: 40m (cut lengths may be available)
sd Value: > 1,500m
Tensile Strength: ≥ 800 / 700 N per 5cm
Fire Behaviour: Class E
Bonding: Self-adhesive with FG35 primer

Roofer’s Perspective ▸

If you’re building a proper warm roof, this is the vapour barrier most commercial specs call for. It bonds well to most substrates, handles site traffic and gives you confidence the insulation layer is protected.
