Sure Edge Gutter Drip Trim 2m
Sure Edge Gutter Drip Trim 2m
Couldn't load pickup availability
2-Part EPDM Rubber Roofing Gutter Drip Edge Trim (2m)
Sure Edge Gutter Drip Trim is a premium 2-part uPVC edge trim designed to secure EPDM rubber roofing membranes along the gutter edge of flat roofs.
It clamps the membrane securely while forming a stepped drip detail that directs water cleanly into the gutter - preventing water tracking behind the fascia or beneath the membrane.
Widely used by professional installers, the Sure Edge system delivers a strong, consistent edge detail with a clean, high-quality finish.
Why Drip Trim Matters ▸
The gutter edge is the most exposed part of any flat roof. Without a proper drip detail:
- Water can track behind the fascia
- Deck edges can become saturated
- Wind can lift the membrane edge
- Water may run down the face of the building
This trim prevents these issues by clamping the membrane securely and directing water into the gutter system.

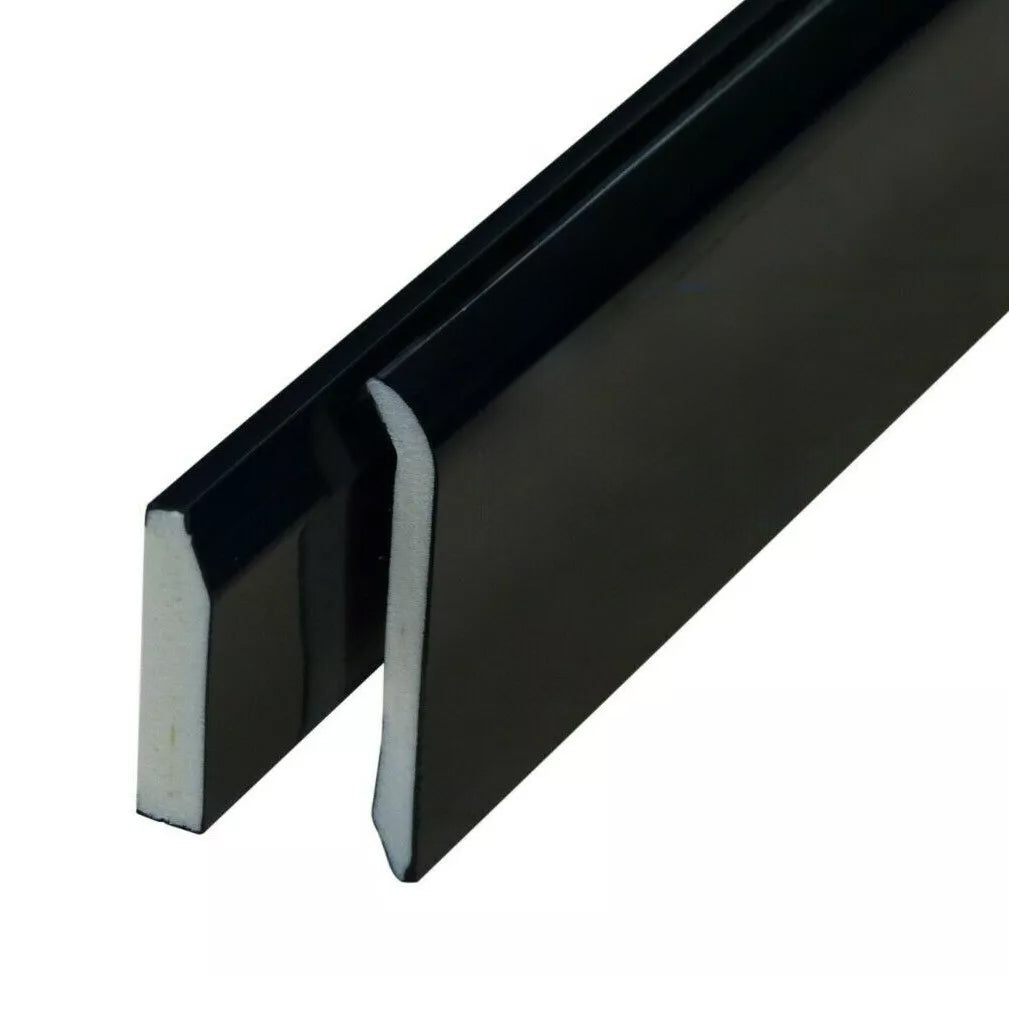

2-Part Clamping System ▸
The system consists of two interlocking components:
- Back plate: fixed to timber batten (10mm thick × 50mm height)
- Front plate: clamps membrane in place (7mm thick × 75mm height)
This creates a strong mechanical bond, securing the membrane without relying solely on adhesive.

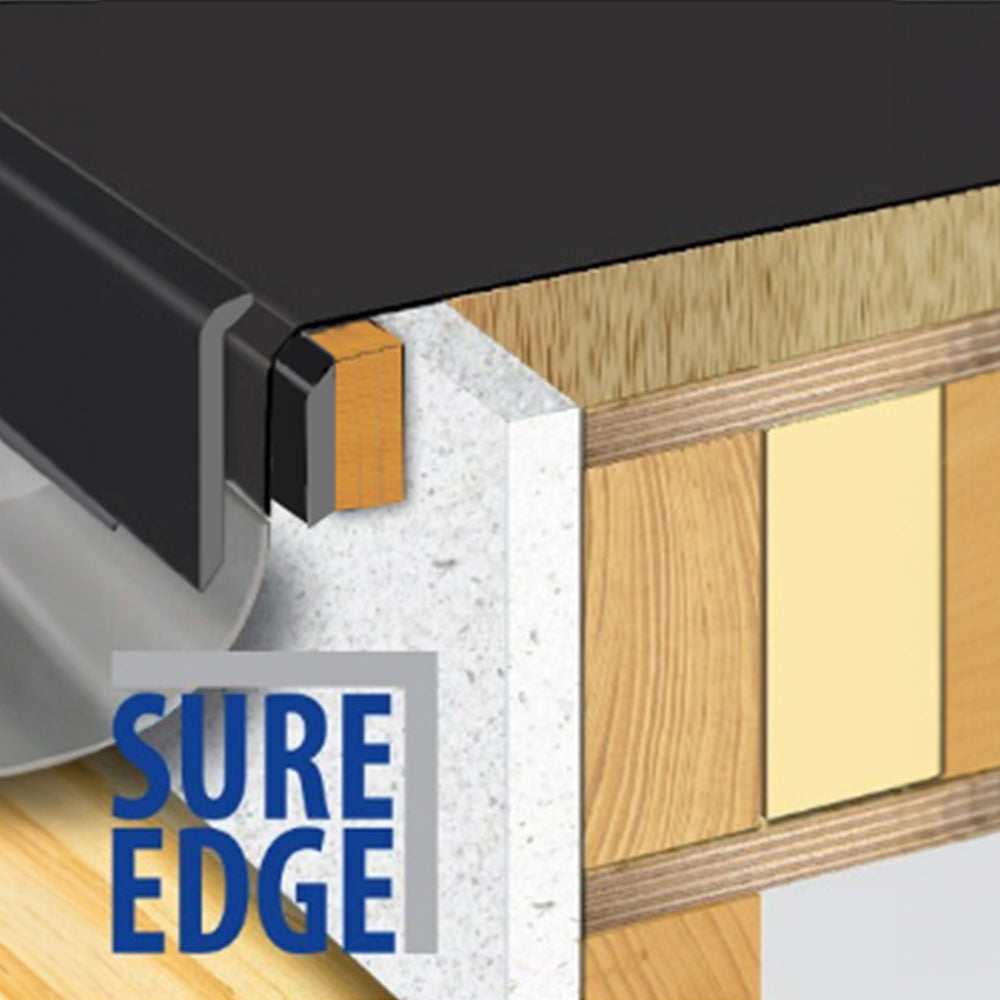

Installation Overview ▸
- Fix a 25×50mm timber batten to the fascia, level with the roof deck
- Install the back plate onto the batten
- Dress the EPDM membrane over the back plate
- Position the front plate over the membrane
- Secure using supplied 50mm PolyTop pins
- Trim excess membrane below the back plate
This creates a secure, consistent edge detail suitable for both trade and DIY installations.
Compatibility ▸
- EPDM rubber roofing membranes
- ClassicBond EPDM systems
- ClassicBond Pro (fleece-backed EPDM)
- Fleece-backed EPDM
- Fully adhered flat roofing systems
Works alongside Sure Edge Kerb Trim to complete the full roof perimeter system.
Finish & Included Components ▸
Available in colours to match modern fascias and rooflines:
- Black
- Anthracite Grey
- White
Each trim includes:
- Pre-drilled fixing holes
- 50mm colour-matched PolyTop pins
- Joining clip
Joining clips conceal expansion gaps and maintain a clean, continuous finish.

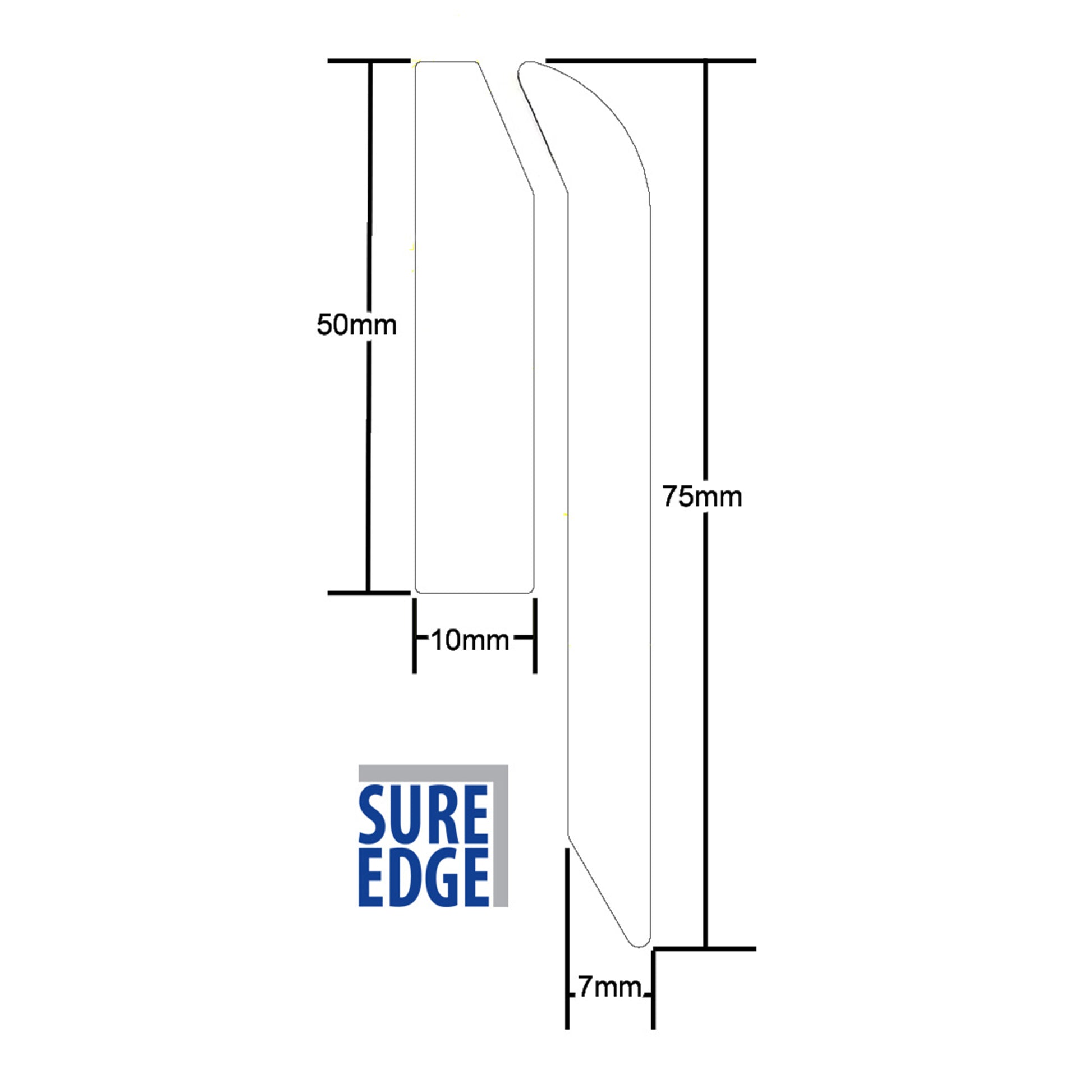

Specifications ▸
- Length: 2.0 metres
- Back plate: 10mm thick × 50mm height
- Front plate: 7mm thick × 75mm height
- Material: Heavy-duty uPVC
- Includes: PolyTop pins & joining clip
- Brand: Sure Edge
Internal and external corners are sold separately.
Roofer’s Perspective ▸
The gutter edge is where most flat roofs fail first. If it’s not detailed properly, water will get behind the fascia and cause problems over time.
A proper 2-part drip trim like this gives a secure mechanical fixing and a clean drip detail. It’s far more reliable than improvised timber solutions and finishes the roof properly.
If you’re installing EPDM correctly, this isn’t optional - it’s a key part of the system.
