Sure Edge Kerb Trim 2m

• Side edges of flat roofs
• Sheds, garden rooms and garages
• Extensions and small flat roof projects

Installed on non-drainage edges to prevent lateral water run-off and guide water towards the gutter edge.

Kerb trim replaces the need for a traditional timber upstand, providing a faster and more reliable edge detail.

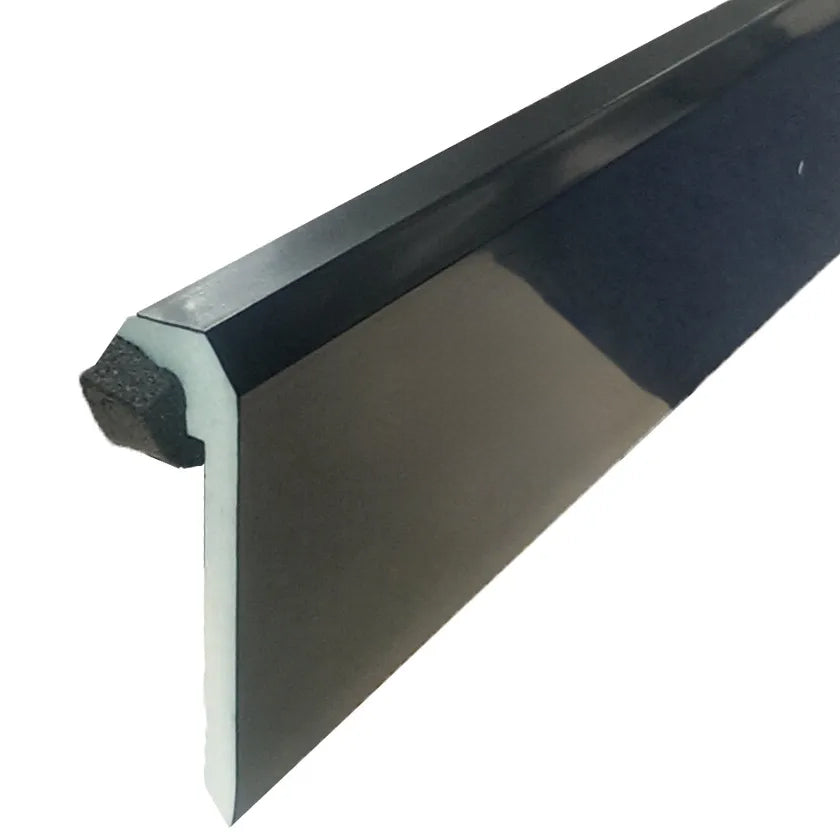

• Pre-formed uPVC upstand
• Prevents water running off roof edges
• Compression seal secures membrane edge
• No exposed fixings through the membrane
• Cleaner, more consistent finish

This simplifies installation while improving long-term durability and appearance.

• EPDM rubber roofing membranes
• ClassicBond EPDM systems
• Fleece-backed EPDM
• Fully adhered flat roof systems

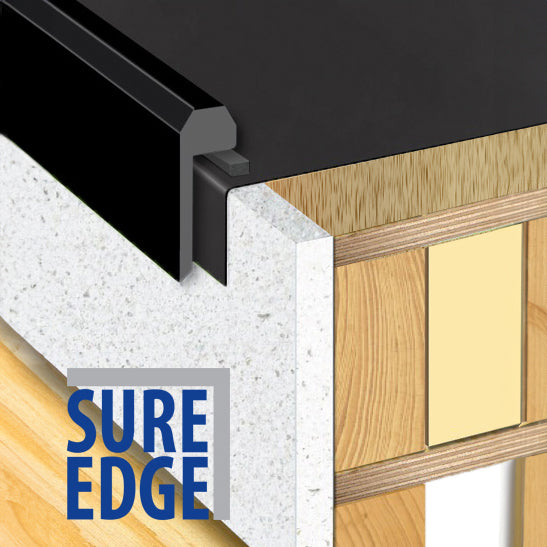

Designed to securely finish membrane edges while maintaining a watertight seal.

1. Install EPDM membrane with minimum 100mm overhang
2. Position trim so compression seal engages membrane
3. Fix through pre-drilled holes using supplied PolyTop pins
4. Allow approx. 25mm expansion gap between lengths
5. Install joining clips and corners where required

Suitable for both professional installers and competent DIY users.

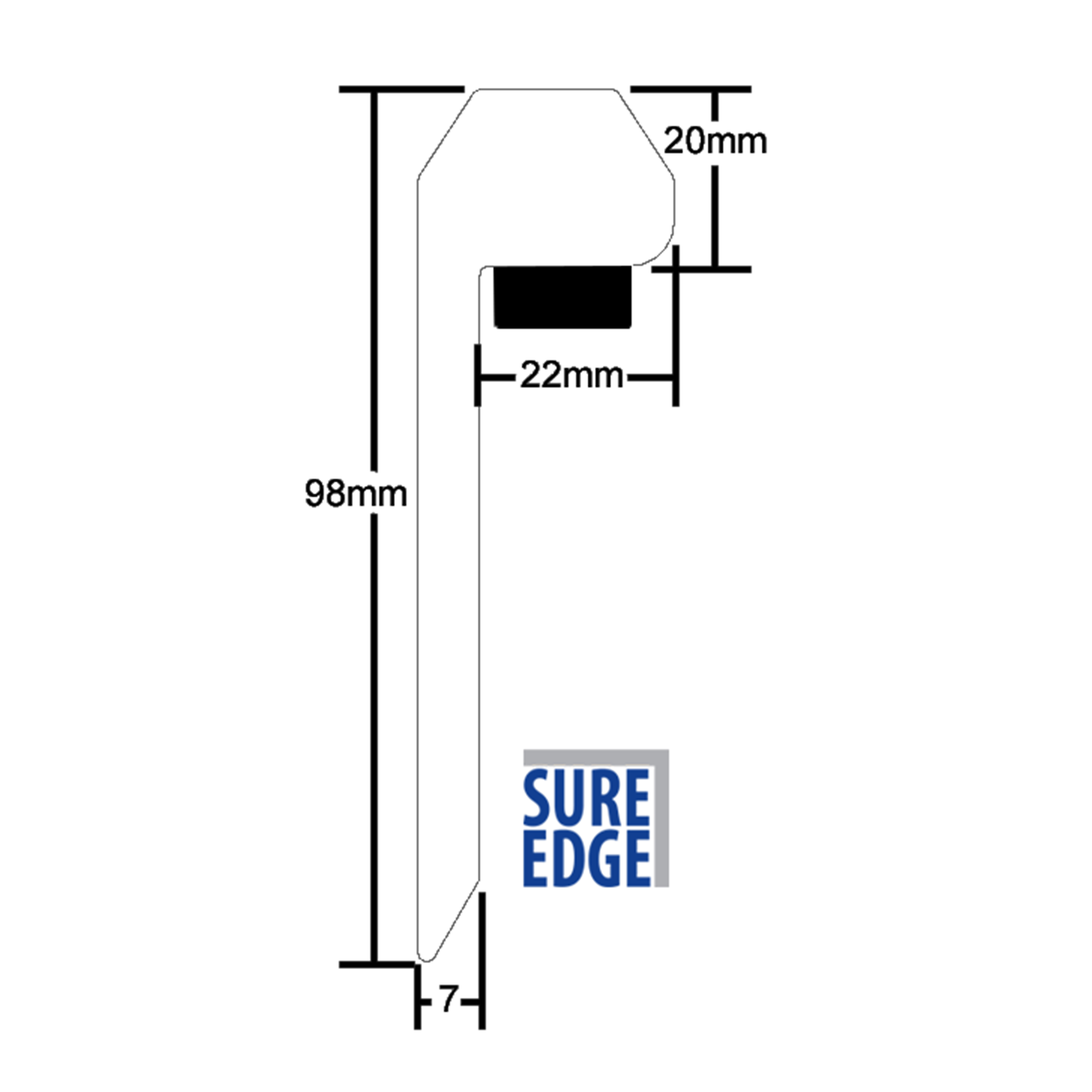

• Length: 2 metres
• Height: 100mm
• Material: Heavy-duty uPVC
• Colours: Black / Anthracite Grey / White
• Includes: PolyTop pins & joining clip

Sure Edge external corners are sold separately.

Available in three popular colours to match modern fascias, windows and doors:

• Black
• Anthracite Grey
• White

Provides a clean, architectural finish to flat roof edges.

Kerb trim isn’t just for looks - it controls water and finishes the roof properly.

It’s quicker and more consistent than building timber upstands, and once installed, it gives a far cleaner and more professional result.
