ARBOFLEX® Kerb Corner – 90° External
ARBOFLEX® Kerb Corner – 90° External
Couldn't load pickup availability

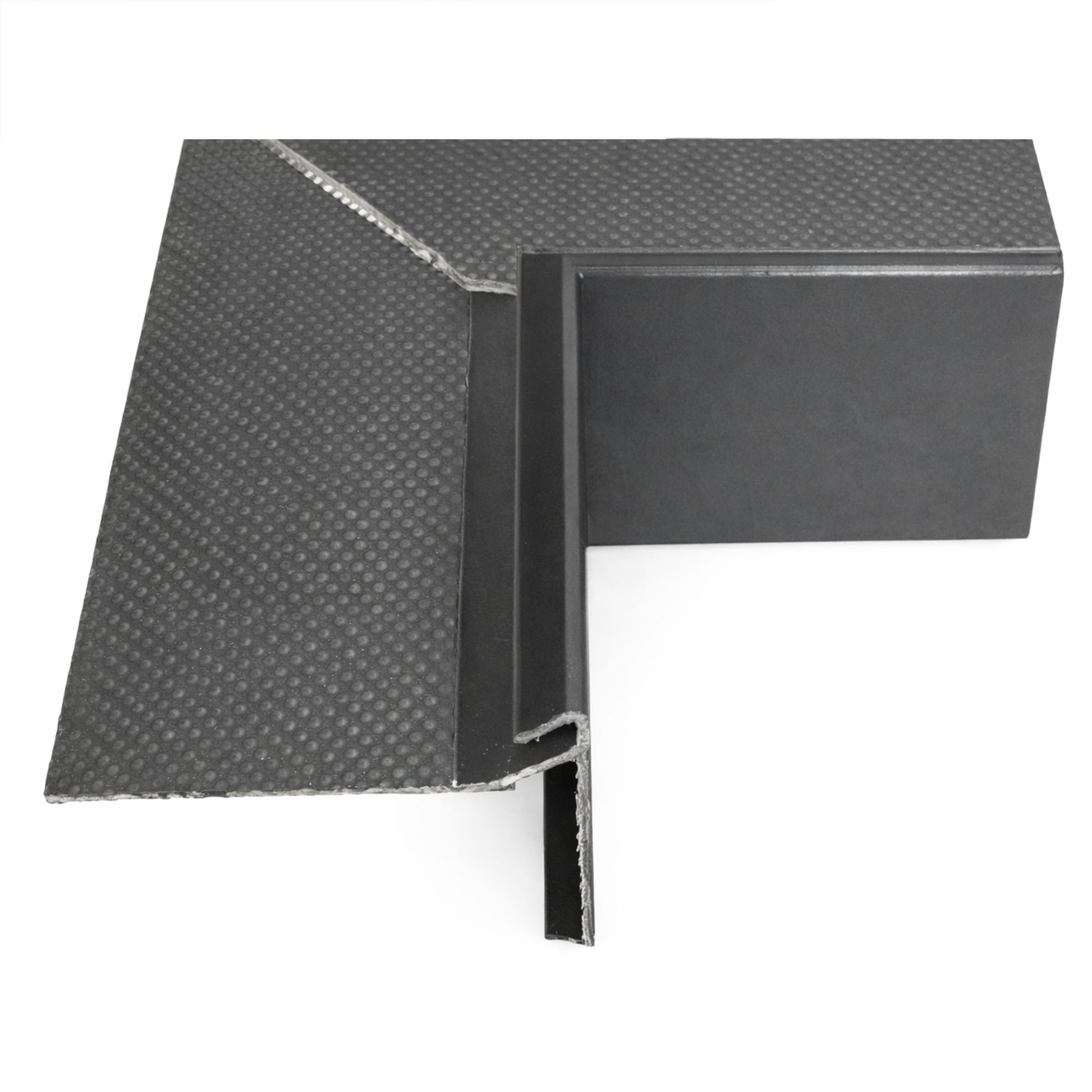

Pre-formed 90° corner for ARBOFLEX raised edge trims.
The ARBOFLEX Kerb Corner connects two lengths of ARBOFLEX Kerb Trim at a 90° external corner on non-draining roof edges.
Manufactured in GRP and colour-matched to the Arboflex system, it forms the raised perimeter detail where two kerb trims meet.
Application ▸
- External 90° corners on raised edges
- Joining two ARBOFLEX kerb trims
- Forming non-draining perimeter corners
Designed specifically for use within the ARBOFLEX PU liquid roofing system.
System Integration ▸
The kerb corner has a recessed rear section matching the Arboflex trims that allows the ARBOFLEX joining clip to slide in from both sides, keeping the trims aligned neatly.
It is installed in the same way as the straight kerb trim:
- Mechanically fixed into the deck (pins sold separately)
- Bedded on a bead of ARBOFLEX PU Sealant
- 225gsm reinforcement matting and ARBOFLEX PU liquid applied over the horizontal return
- All pin fixings covered and sealed within the reinforced membrane
Once laminated, the corner becomes fully integrated into the liquid waterproofing system.
Specification ▸
- Type: 90° Kerb Corner
- Kerb Height: 110mm
- Material: GRP
- Colour: Grey (matched to ARBOFLEX PU UV Protect)
- Compatible With: ARBOFLEX Kerb Trim, ARBOFLEX PU, 225gsm matting & UV Protect
Summary ▸
The ARBOFLEX Kerb Corner forms the 90° junction between two raised edge trims on non-draining roof perimeters. Mechanically fixed and fully integrated into the reinforced PU membrane, it provides a secure and durable raised corner detail.
