ARBOFLEX® Drip Corner – 90° External
ARBOFLEX® Drip Corner – 90° External
Couldn't load pickup availability

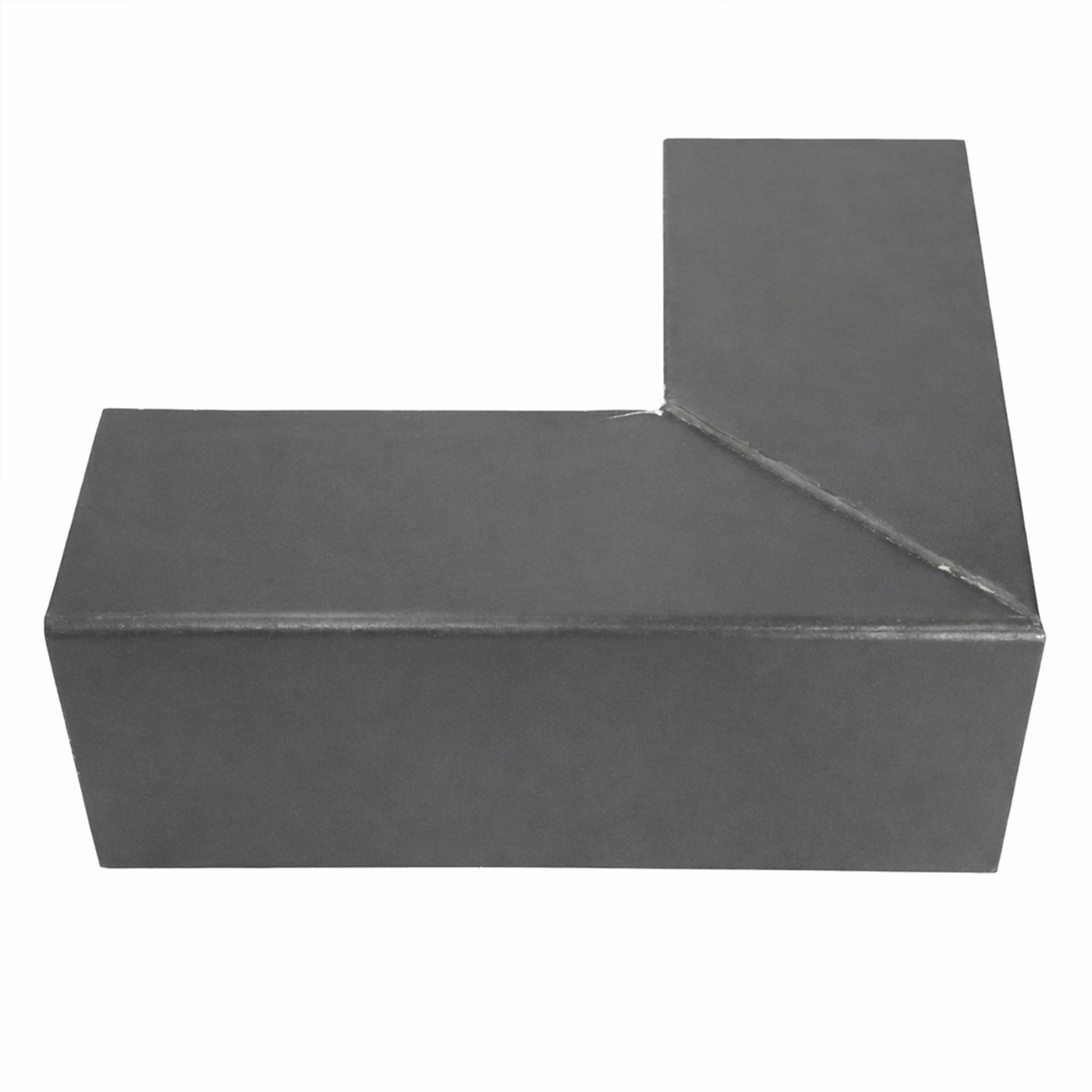

Pre-formed 90° corner for ARBOFLEX drip edge trims.
The ARBOFLEX Drip Corner is designed to connect two lengths of ARBOFLEX Drip Trim at a 90° external corner.
Manufactured in GRP and colour-matched to the ARBOFLEX system, it provides a clean and consistent perimeter detail where two drip edges meet.
Application ▸
- External 90° corners on draining roof edges
- Connecting two ARBOFLEX drip trims at a right angle
- Forming run-off perimeter corners
Designed exclusively for use within the ARBOFLEX PU liquid roofing system.
System Integration ▸
The drip corner mirrors the rear recess of the standard drip trim to accommodate the ARBOFLEX joining clip on both sides for seamless alignment.
Installation follows the same process as the straight drip trim:
- Mechanically fixed into the deck (pins sold separately)
- Bedded with ARBOFLEX PU Sealant at the rear
- 225gsm reinforcement matting and ARBOFLEX PU liquid feathered onto the horizontal return
- Pin fixings fully encapsulated within the reinforced membrane
The corner is not simply fixed in place - it is incorporated into the system.
Specification ▸
- Type: 90° Drip Corner
- Drop: 75mm
- Width: Approx. 200mm
- Material: GRP
- Colour: Grey (matched to ARBOFLEX PU UV Protect)
- Compatible With: ARBOFLEX Drip Trim, ARBOFLEX PU, 225gsm matting & UV Protect
Summary ▸
The ARBOFLEX Drip Corner forms the 90° connection between two ARBOFLEX drip trims on draining roof edges. Mechanically fixed and fully integrated into the reinforced PU membrane, it ensures a secure and waterproof perimeter corner detail.
