ARBOFLEX® Kerb to Drip Corner - 90° (Left & Right)
ARBOFLEX® Kerb to Drip Corner - 90° (Left & Right)
Couldn't load pickup availability
Pre-formed 90° corner for joining ARBOFLEX kerb and drip trims.
The ARBOFLEX Kerb to Drip Corner is used where a raised edge (Arboflex kerb trim) meets a draining gutter drip edge (Arboflex drip trim) at a 90° corner.
Manufactured in GRP and colour-matched to the Arboflex system, it allows a clean transition between raised and run-off edges without site forming.
Available in Left Hand and Right Hand options.
Choosing Left or Right Hand ▸
Orientation is based on facing the gutter edge:

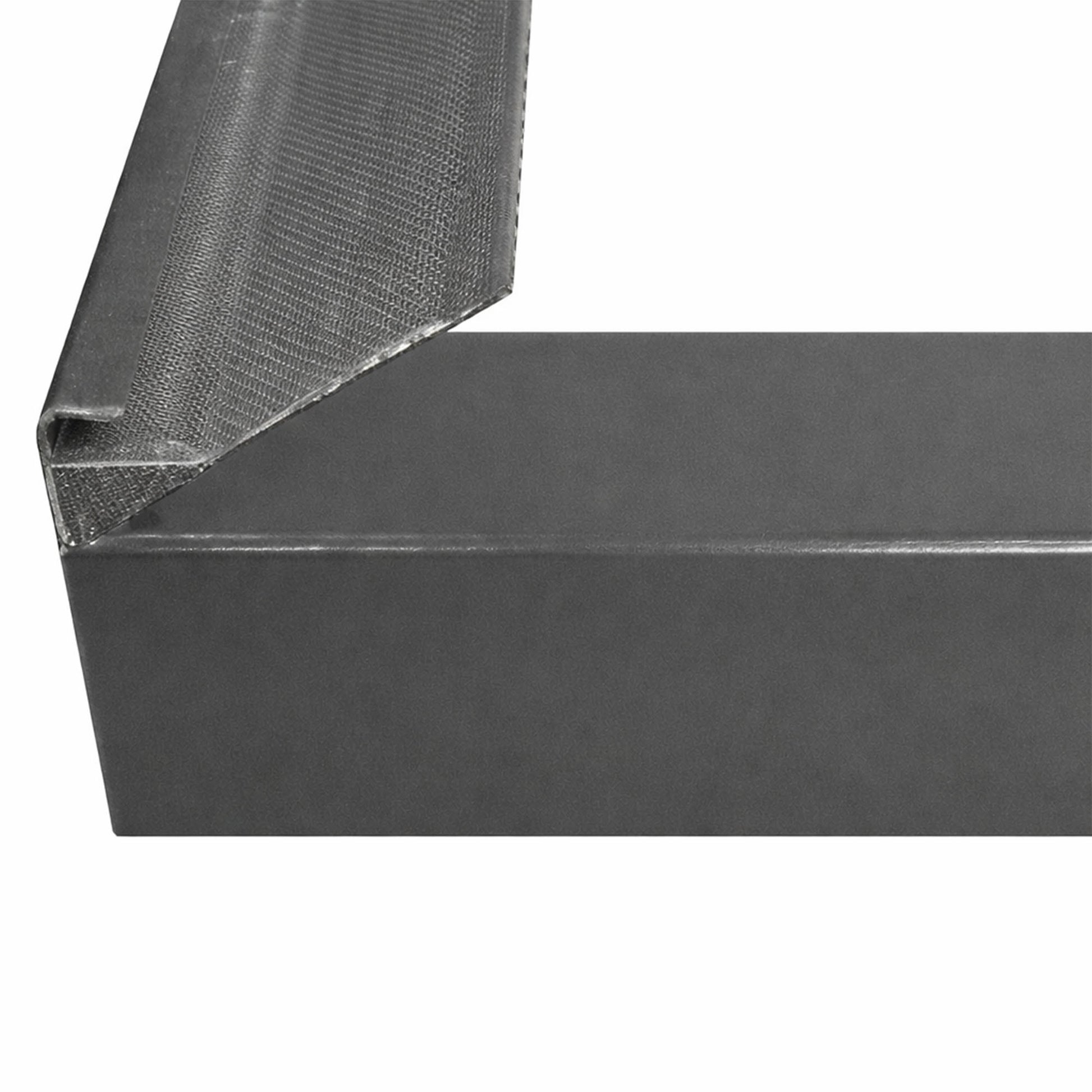

- Left Hand Corner – Select when the kerb edge runs horizontally toward a drip edge on the left-hand side while facing the gutter.

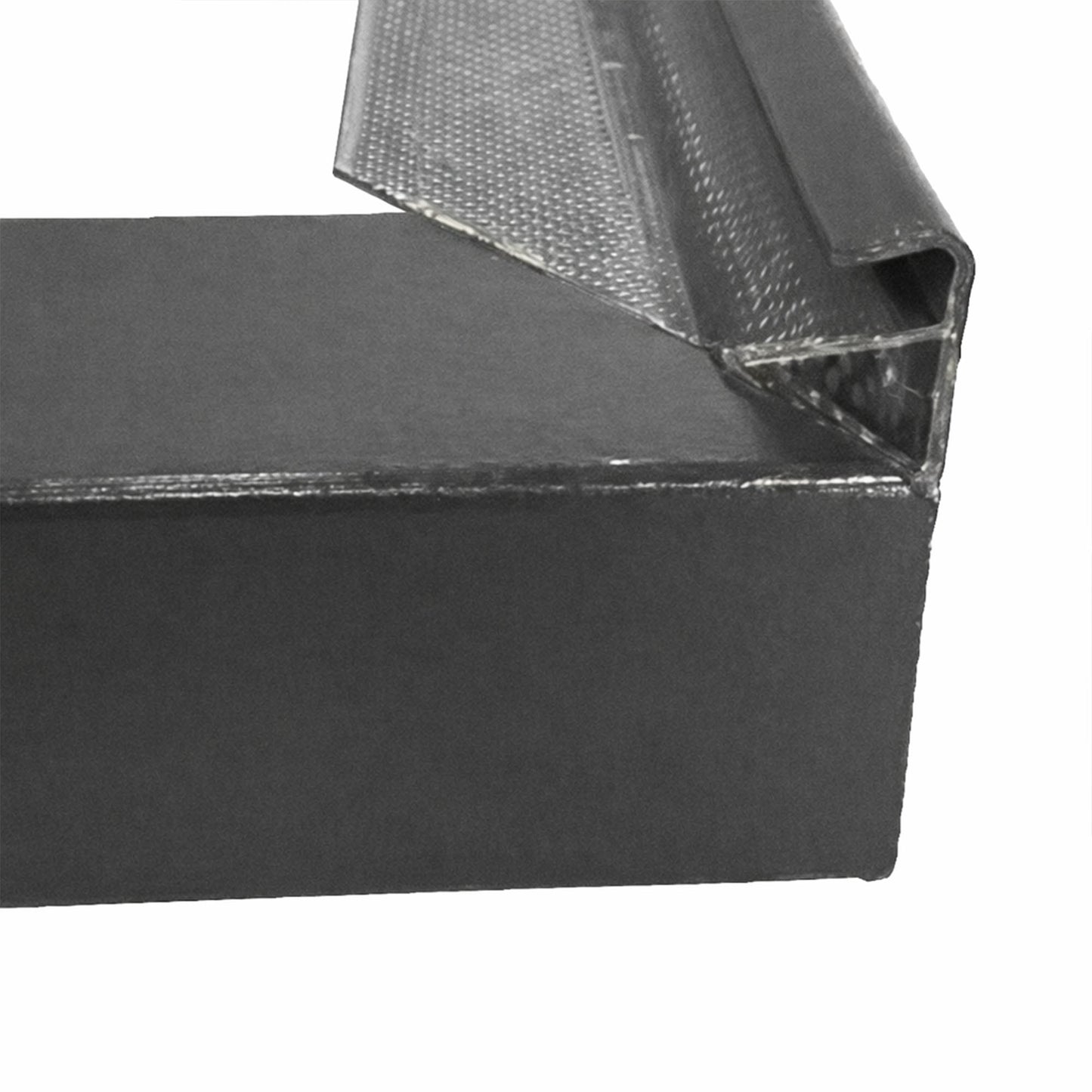

- Right Hand Corner – Select when the kerb edge is on the right-hand side while facing the gutter.
Correct orientation ensures the raised and draining edges align properly.
System Integration ▸
Installation follows the same process as the straight trims:
- Mechanically fixed into the deck (pins sold separately)
- Bedded with ARBOFLEX PU Sealant
- 225gsm reinforcement matting and ARBOFLEX PU liquid feathered onto the horizontal return
- Pin fixings fully encapsulated within the reinforced membrane
The corner becomes fully integrated into the liquid waterproofing system once laminated.
Specification ▸
- Type: 90° Kerb to Drip Corner
- Kerb Height: 110mm
- Drip Height: 75mm
- Material: GRP
- Colour: Grey (matched to ARBOFLEX PU UV Protect)
- Options: Left Hand / Right Hand
- Compatible With: ARBOFLEX Kerb Trim & ARBOFLEX Drip Trim
Summary ▸
The ARBOFLEX Kerb to Drip Corner forms the 90° transition between raised and draining roof edges. Supplied in left and right-hand options, it ensures a clean, fully integrated connection within the reinforced Arboflex PU membrane system.
